3 Bears in a Canoe

A customer in Maine is building a home and wanted a unique decoration for one of the large walls. This piece is a real 12′ canoe with part of the side sliced off to go against the wall.

The architects sent me this as a concept sketch…

sketch1

Next, I drew up a sketch and went back and forth refining it until they were satisfied.

IMG_20170505_145926969

Cub measurementsI recommended we make the bears out of HDU foam since this would be a wall hanging. The finished bears ended up weighing in total around 60 lbs! Not bad for their large size.

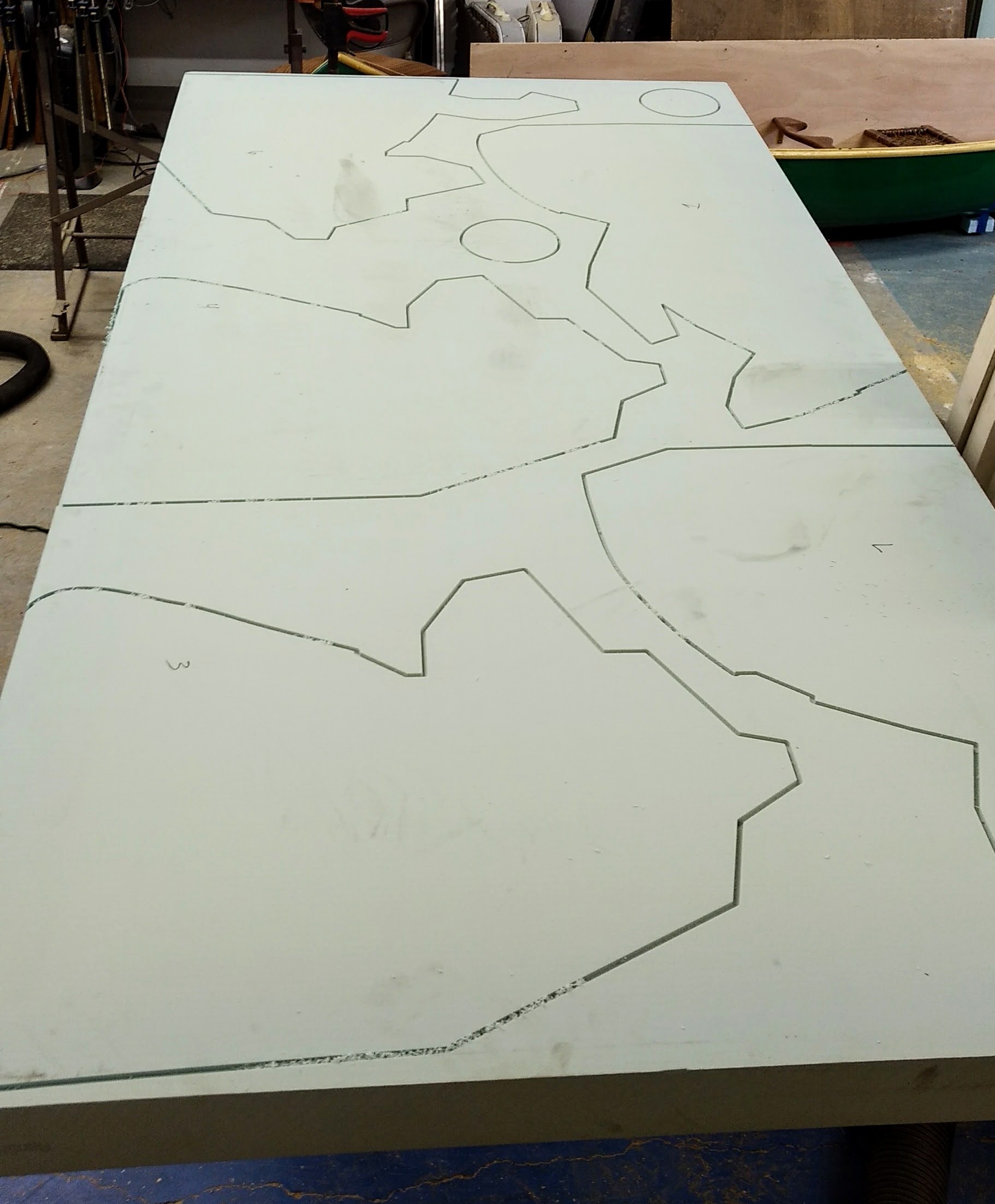

The bears would be carved out of foam blocks made from laminated sheets of foam which would be cut out on the CNC. It was a challenge to envision and plan out how to slice these 3D objects so that the laminated form wouldn’t be missing anything.

sketch2

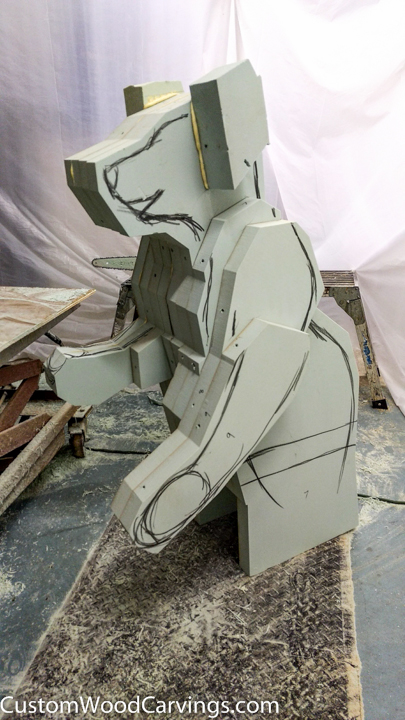

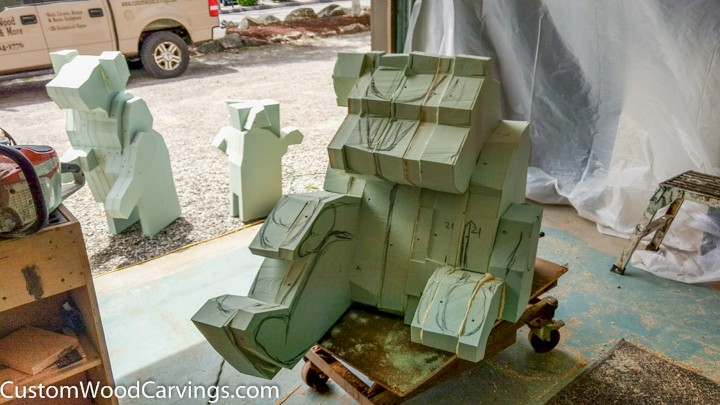

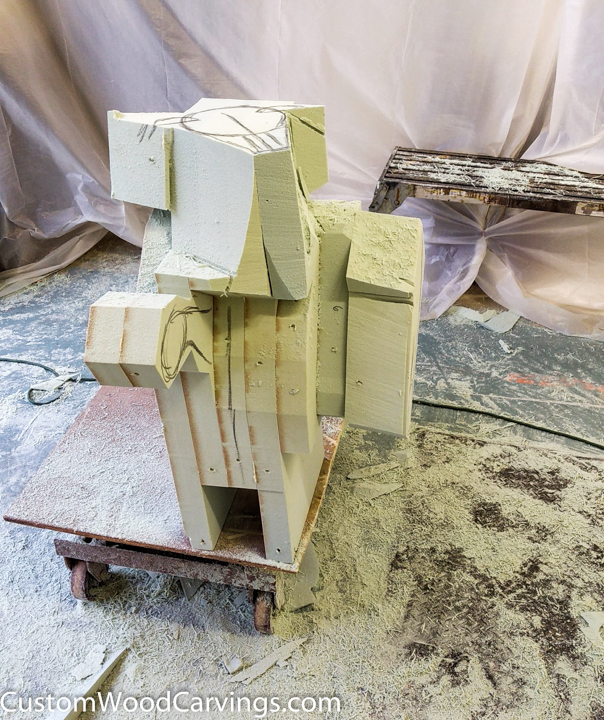

 I began screwing and gluing the foam cutouts with gorilla glue.

IMG_20170606_171043168

20170610-IMG_20170610_214509794

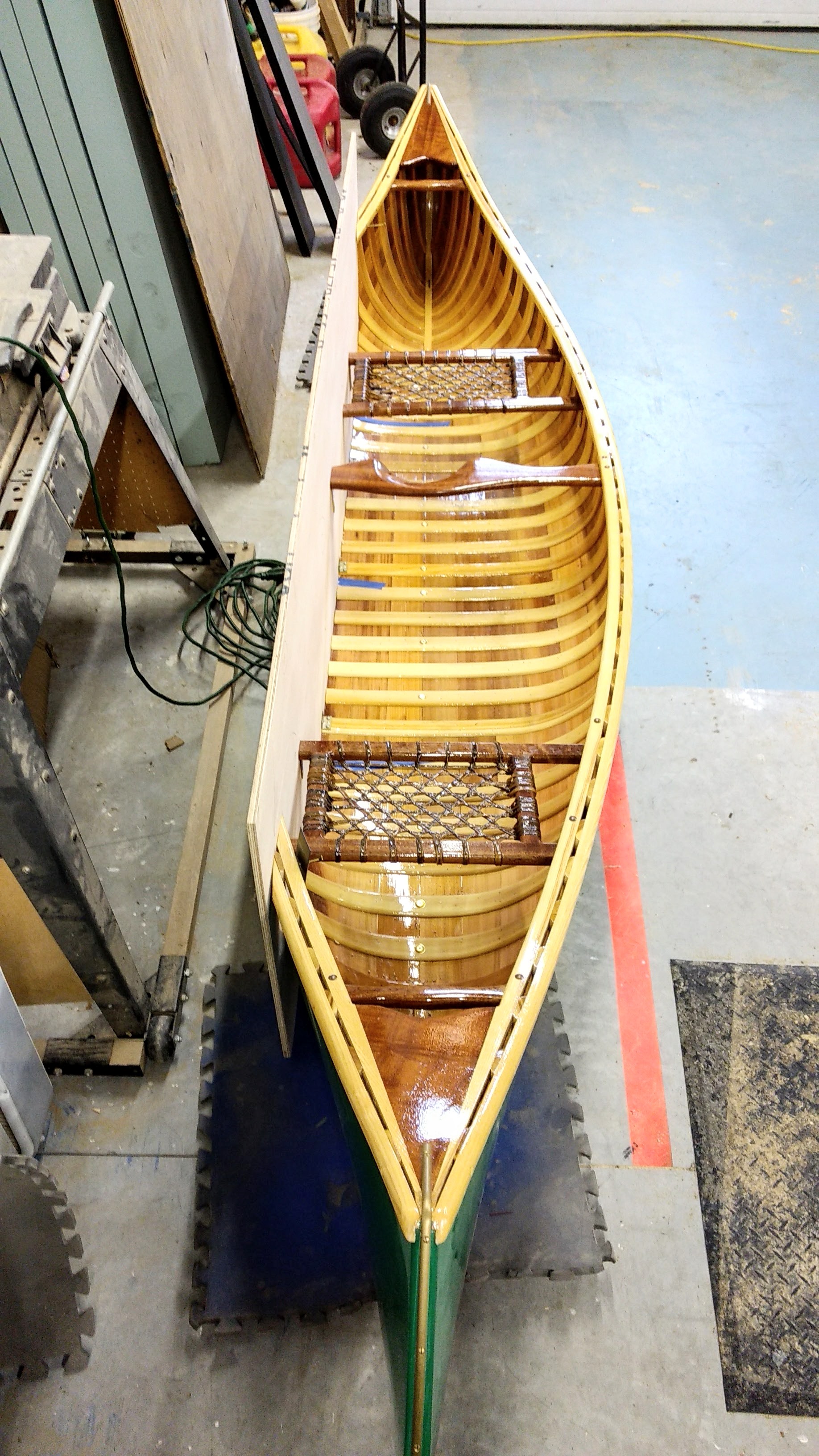

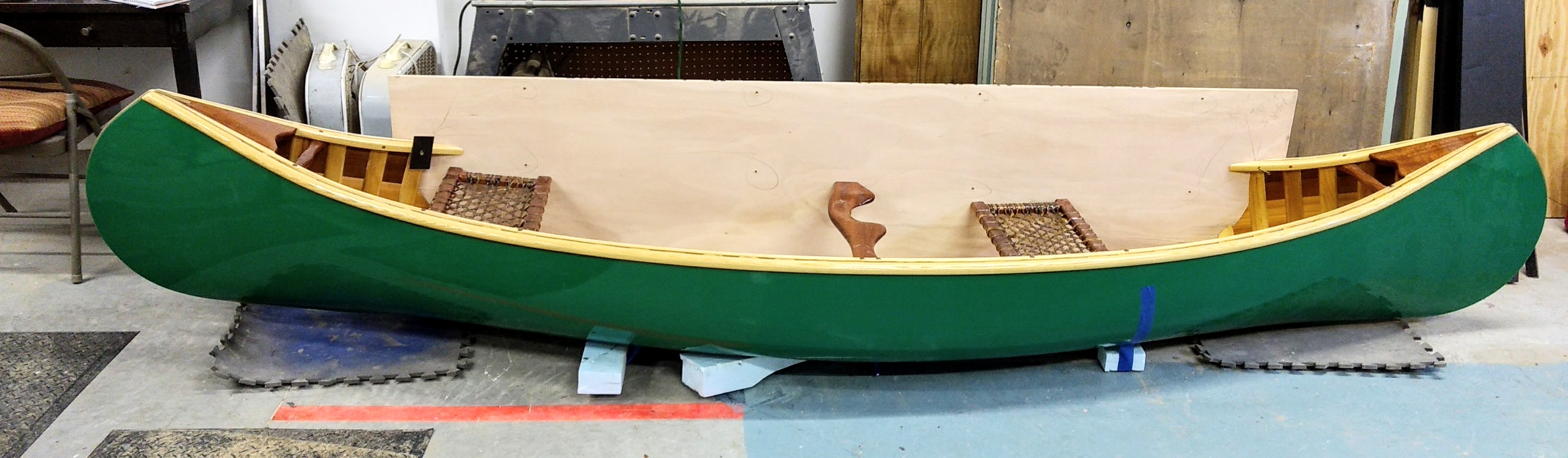

Here is the canoe they sent pre cut…

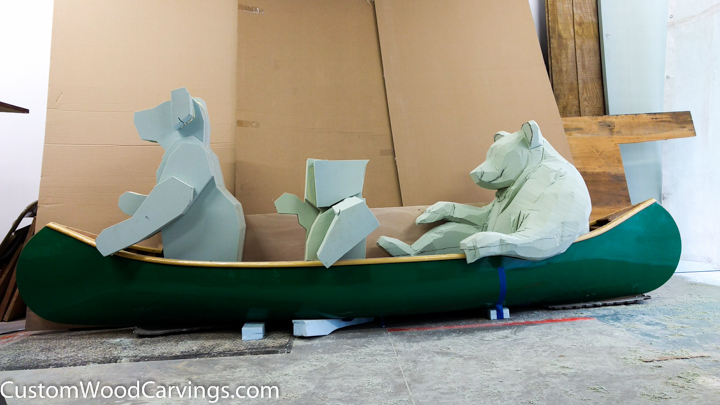

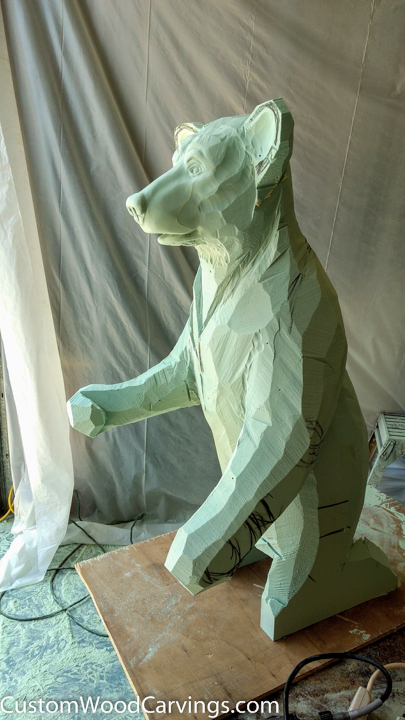

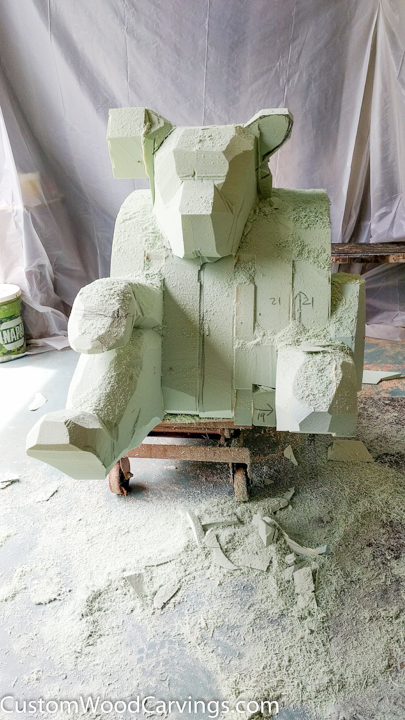

Next, I started carving with my battery saw to form and fit the bears into the canoe.

20170610-IMG_20170610_234132600

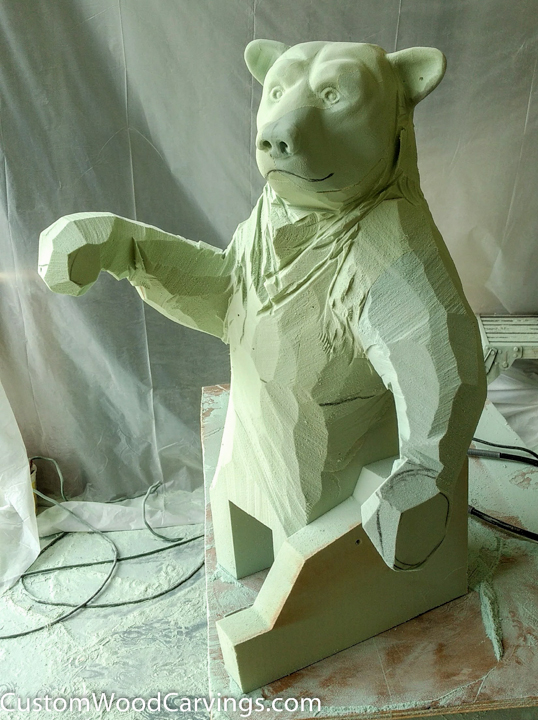

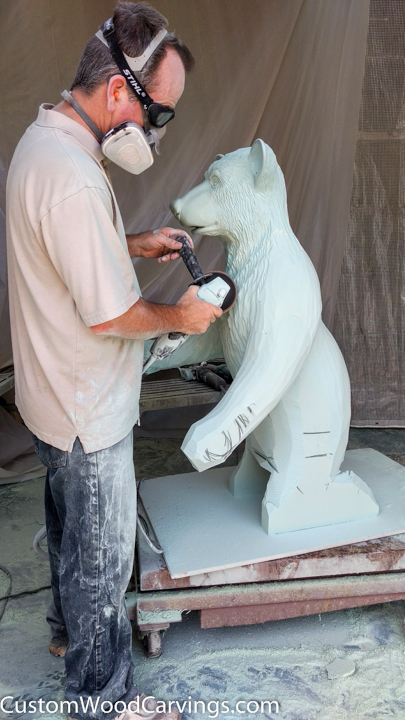

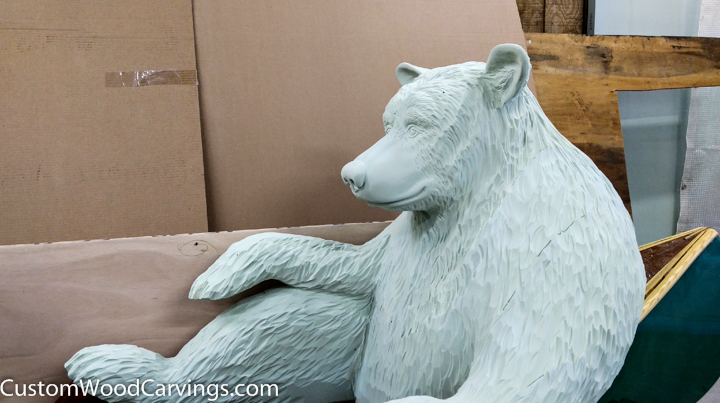

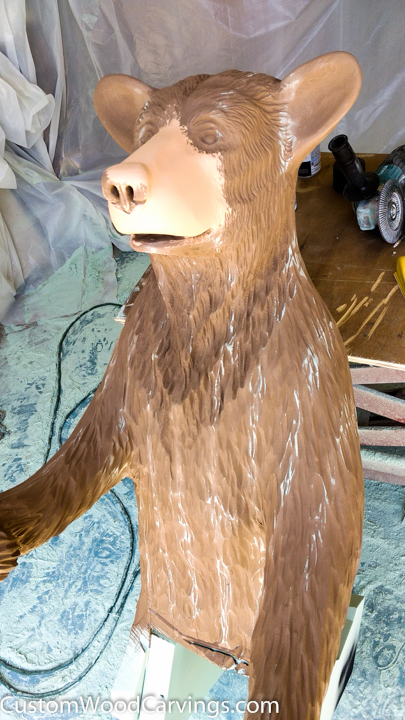

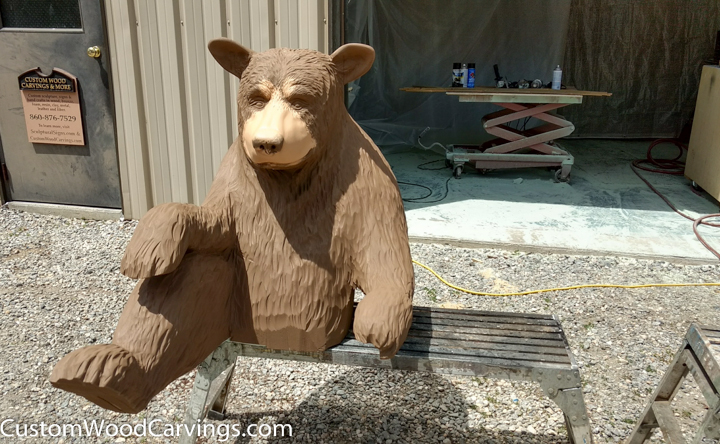

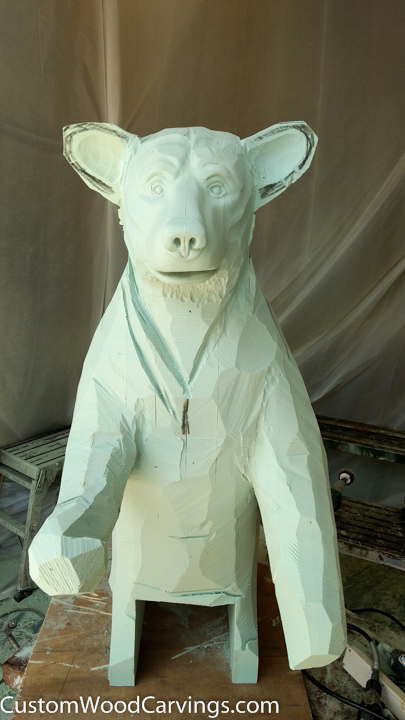

After the chainsaw work, it was time for detailing the face and fur with an angle grinder with sanding disc, dremels, rasps and hand sanders.

20170612-IMG_20170612_194457218

Look at what the dust did to my arm!!  Creepy!!

20170612-IMG_20170612_185117286

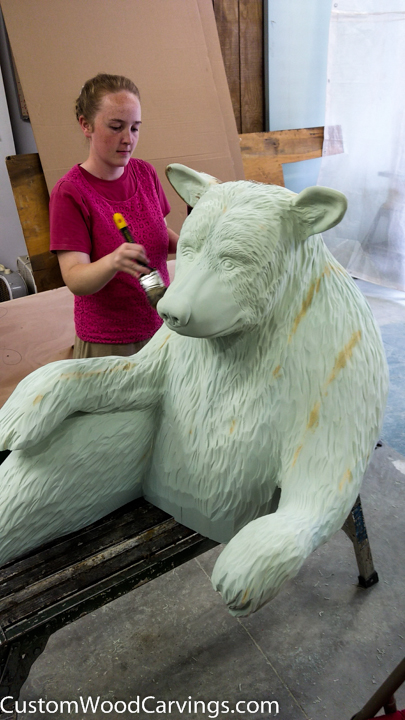

Next, it was time for painting primer on the foam.

20170614-IMG_20170614_011212042

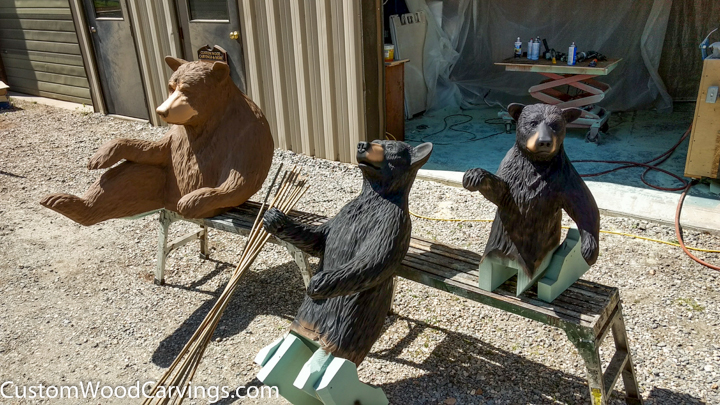

Next, they were sprayed with black and the eyes were glossed.

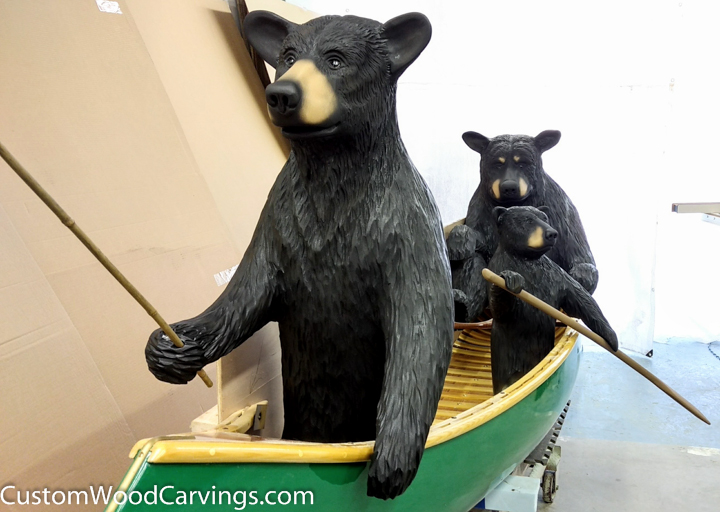

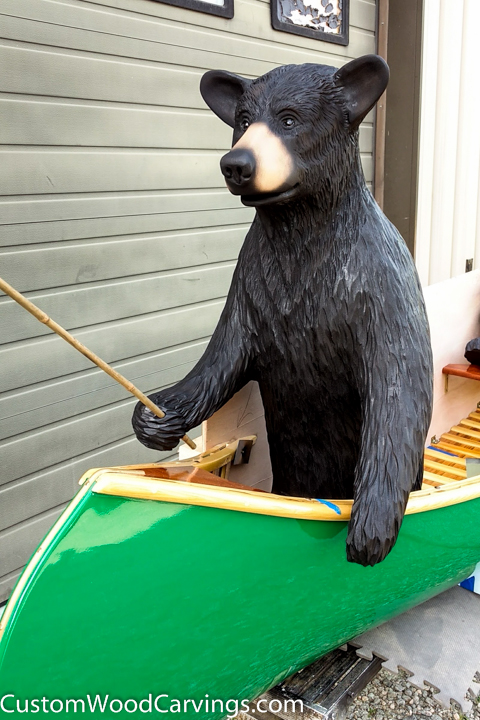

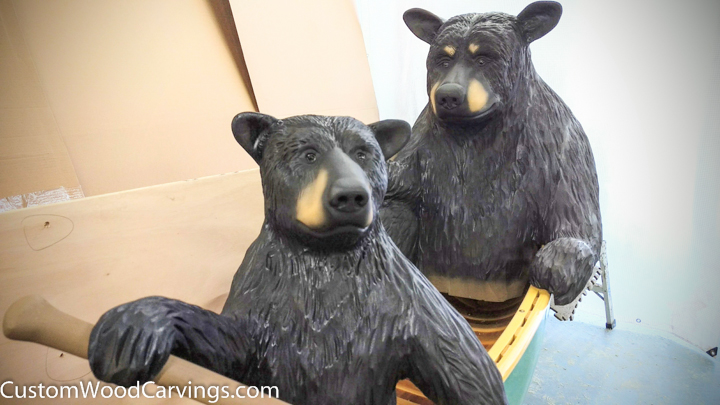

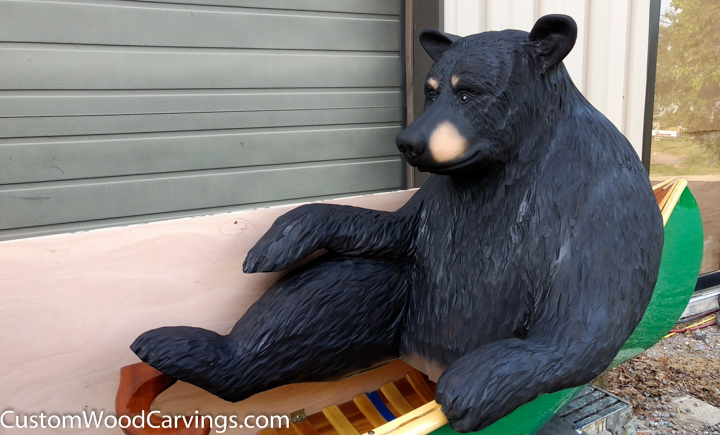

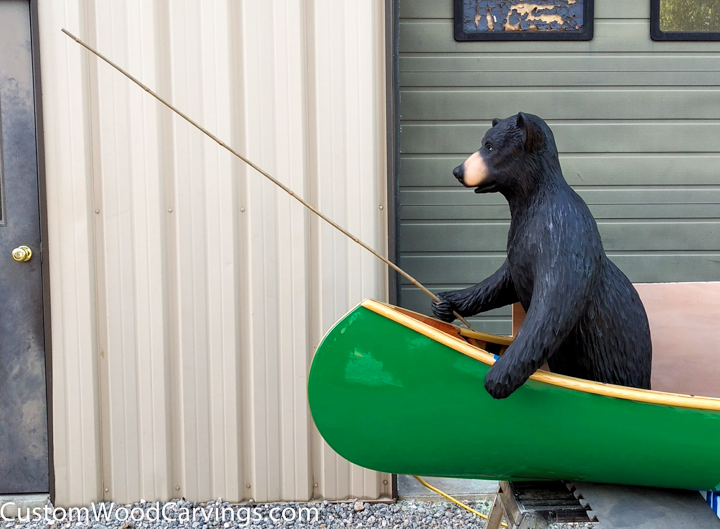

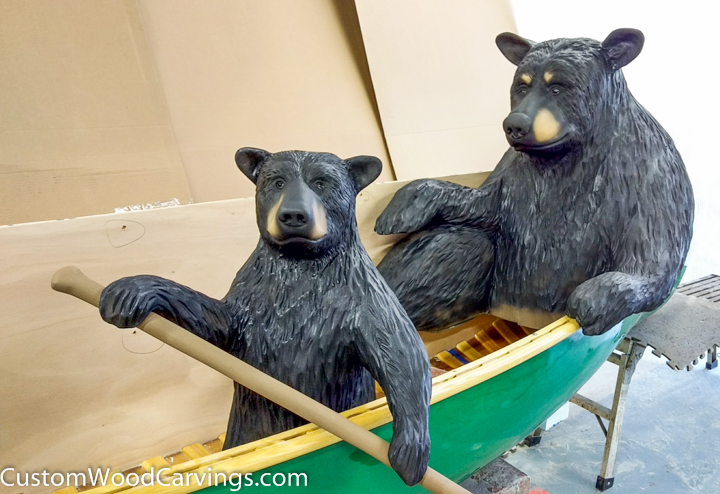

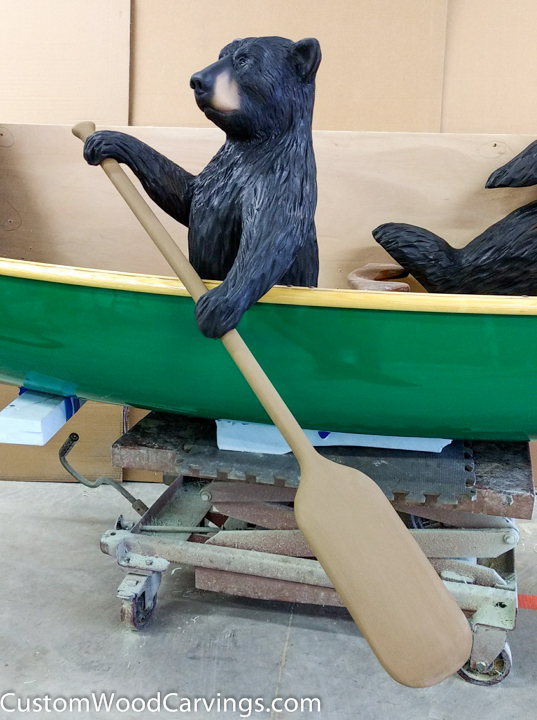

Here are some finished pics…

20170614-IMG_20170614_180942841

Here are some videos from this project.

Thanks for looking! If you enjoy these posts, click the “follow” button for post updates. If you have an idea for a custom sculpture or sign, click the contact page to get in touch!
