Fiberglass resin casts for monument signs in Indian Shores, Florida

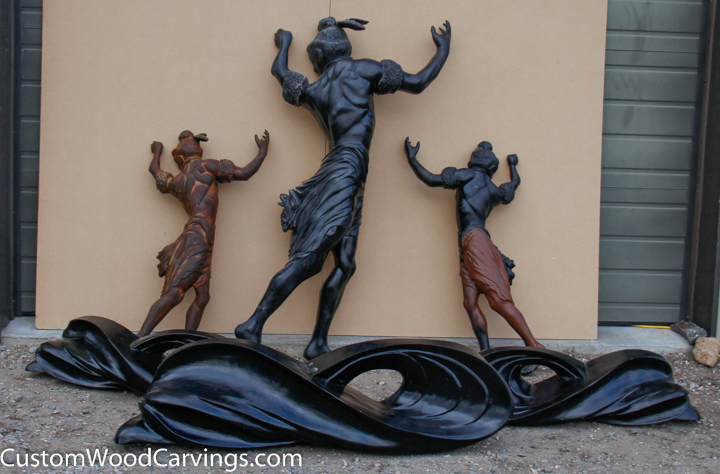

The town of Indian Shores Florida is creating 5 monument signs and we’ve been contracted to create the fiberglass resin Indian and wave forms for the signs. This involves creating 6 models, 6 molds, and 14 casts. The following images will show the construction process through this journey.

sign

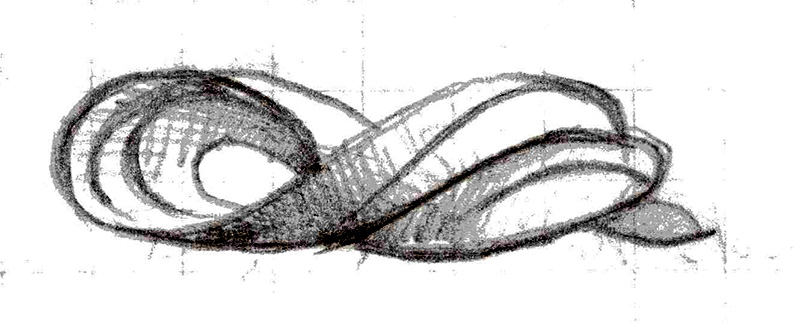

Stage 1 – Construct 3 Indian figures and 3 wave forms

indidn-dull

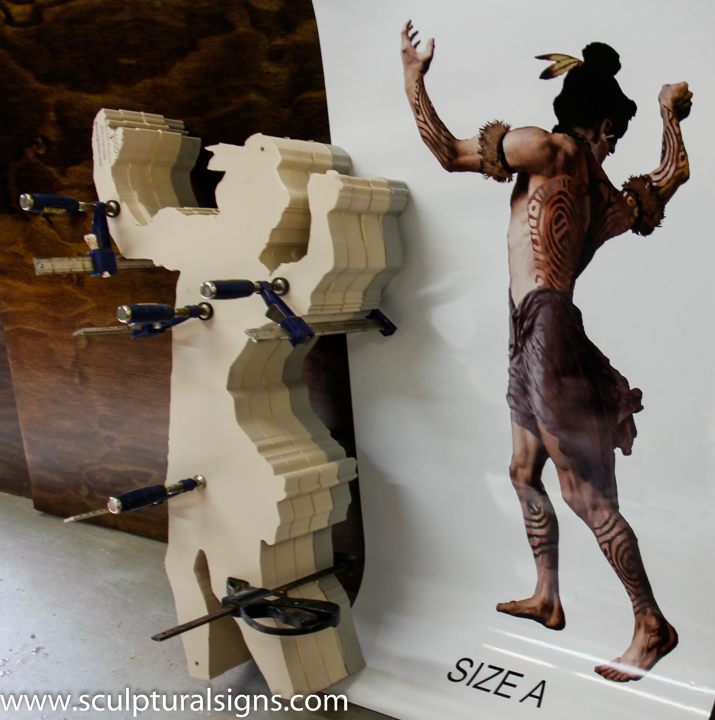

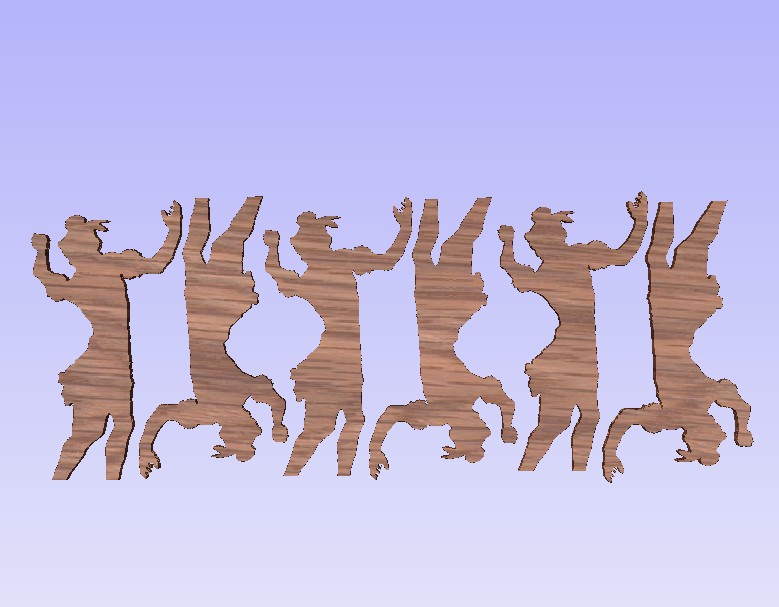

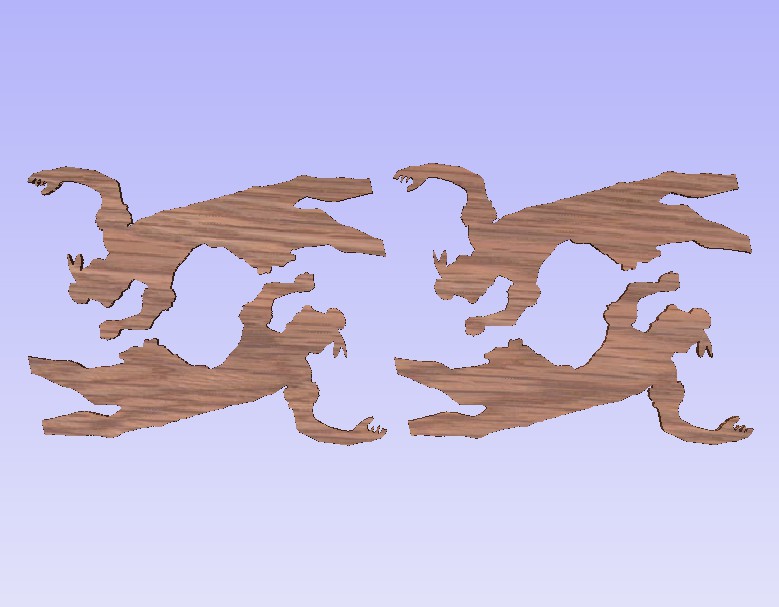

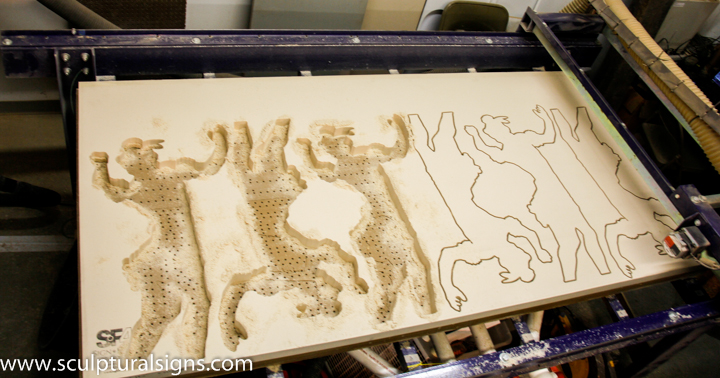

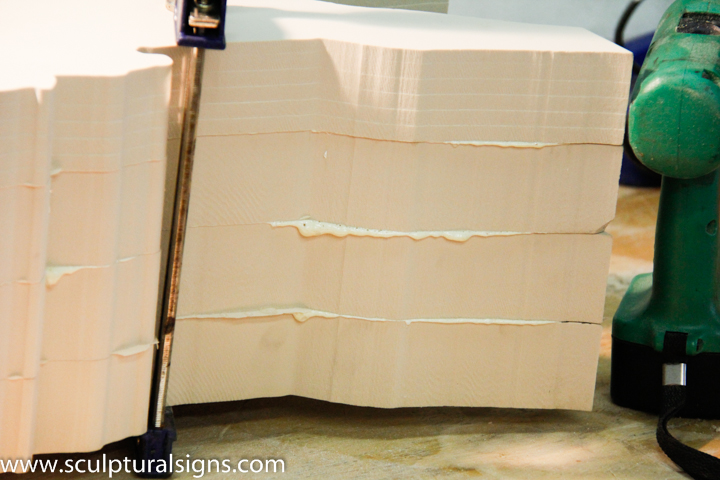

Step 1 – Cut figures and forms on CNC out of HDU foam and laminate into blocks.

20170106-_mg_9433

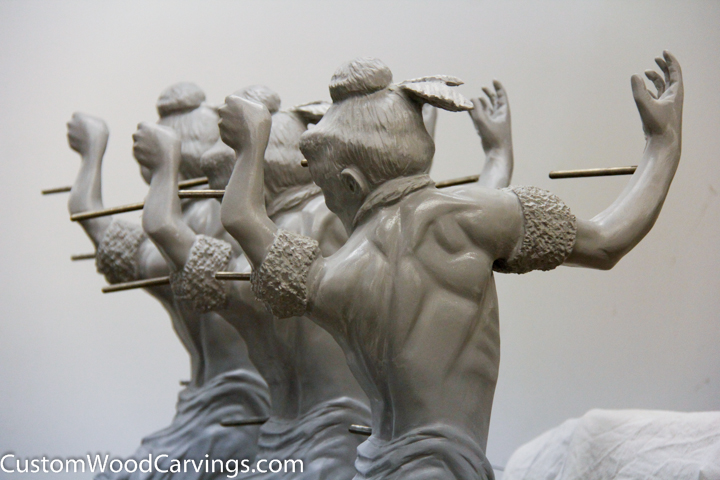

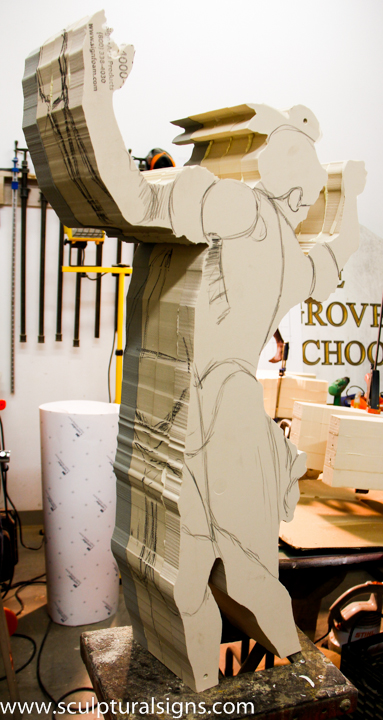

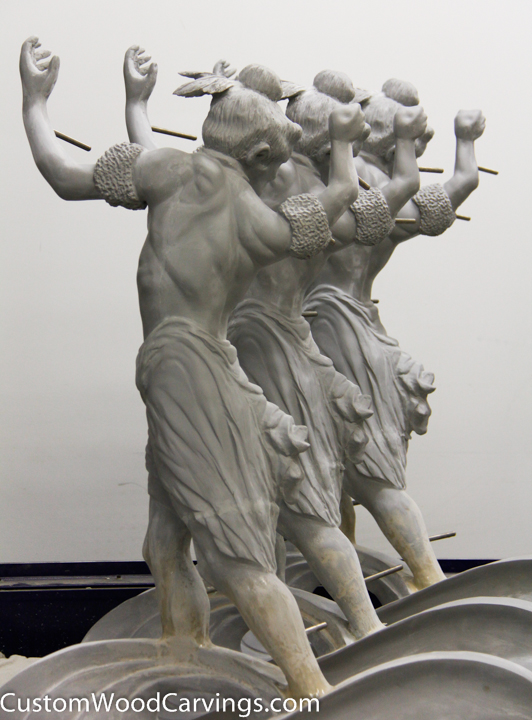

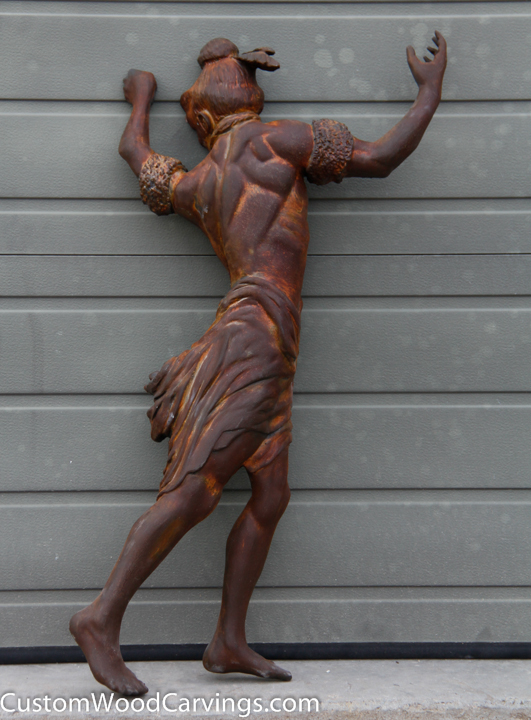

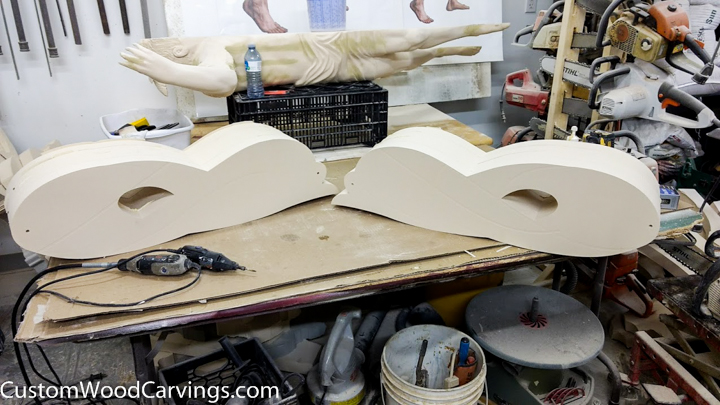

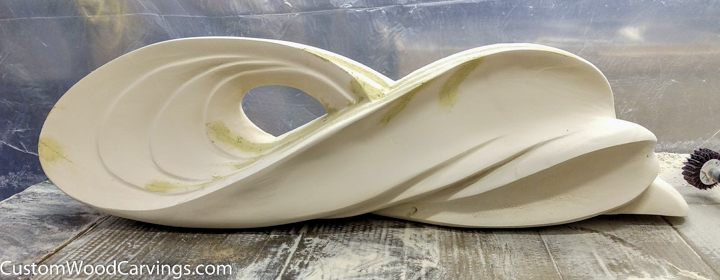

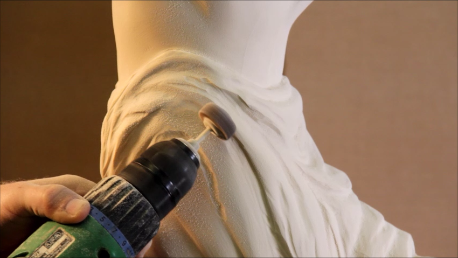

Step 2   – Draw and carve foam

snapshot-2-1-17-2017-11-06-pm

_mg_9594

image-2

20170304-image

20170304-img_20170206_164224247

20170304-img_20170206_164451078

image-1


Stage 2 – Make the molds –
3 Indian and 3 wave molds

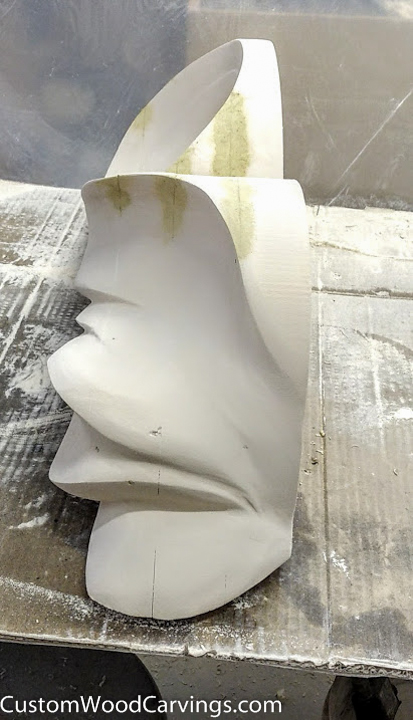

Step 1 – Prime the foam models and spray lacquer to seal the foam and make a surface easy to release from.

img_20170217_124821457_burst000_cover-1

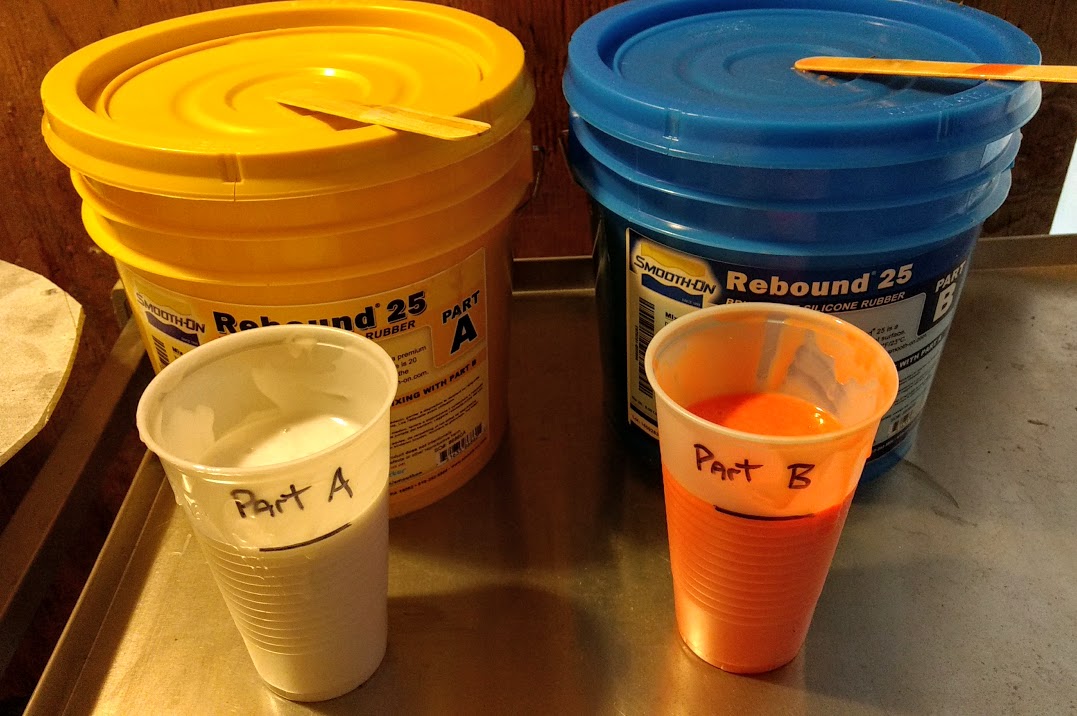

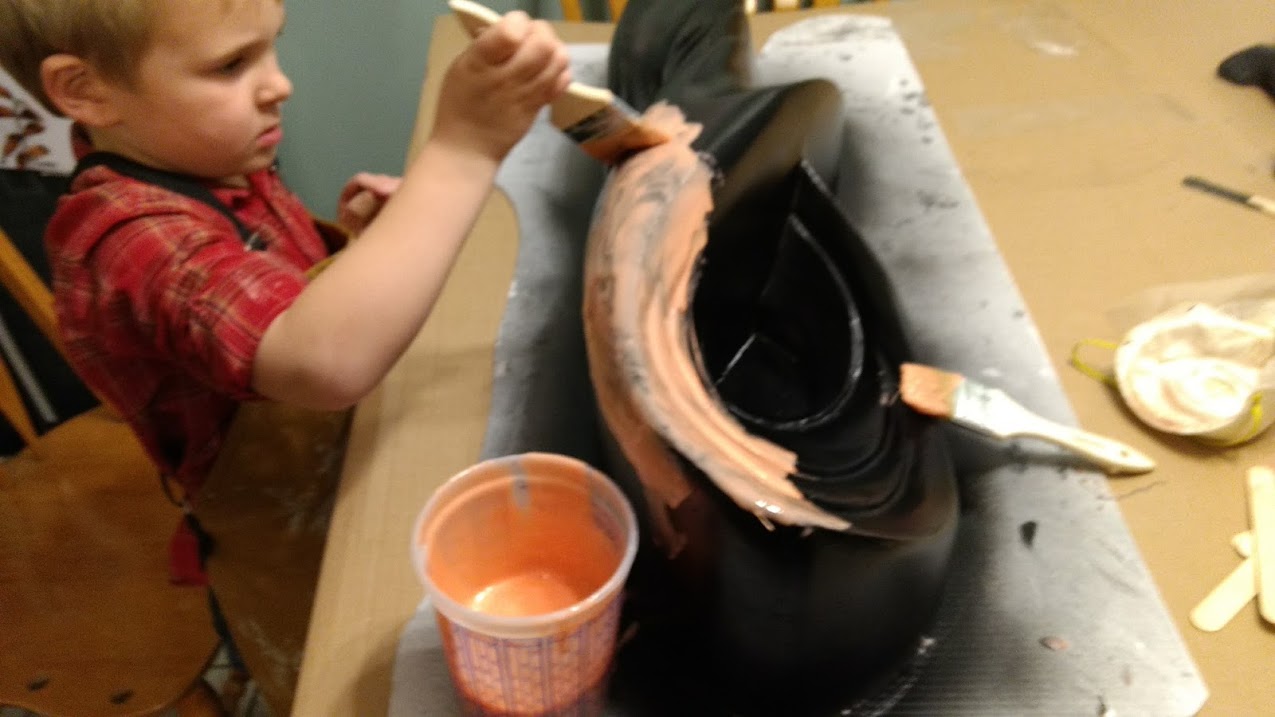

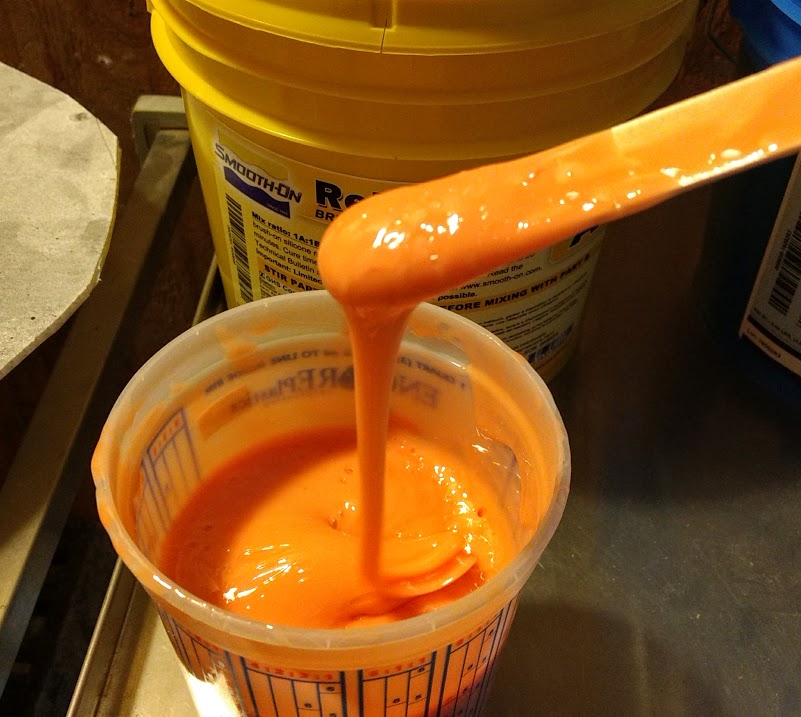

Step 2 – Brush on 4 layers of silicone as a flexible mold.

img_20170201_162041188

img_20170201_162129809

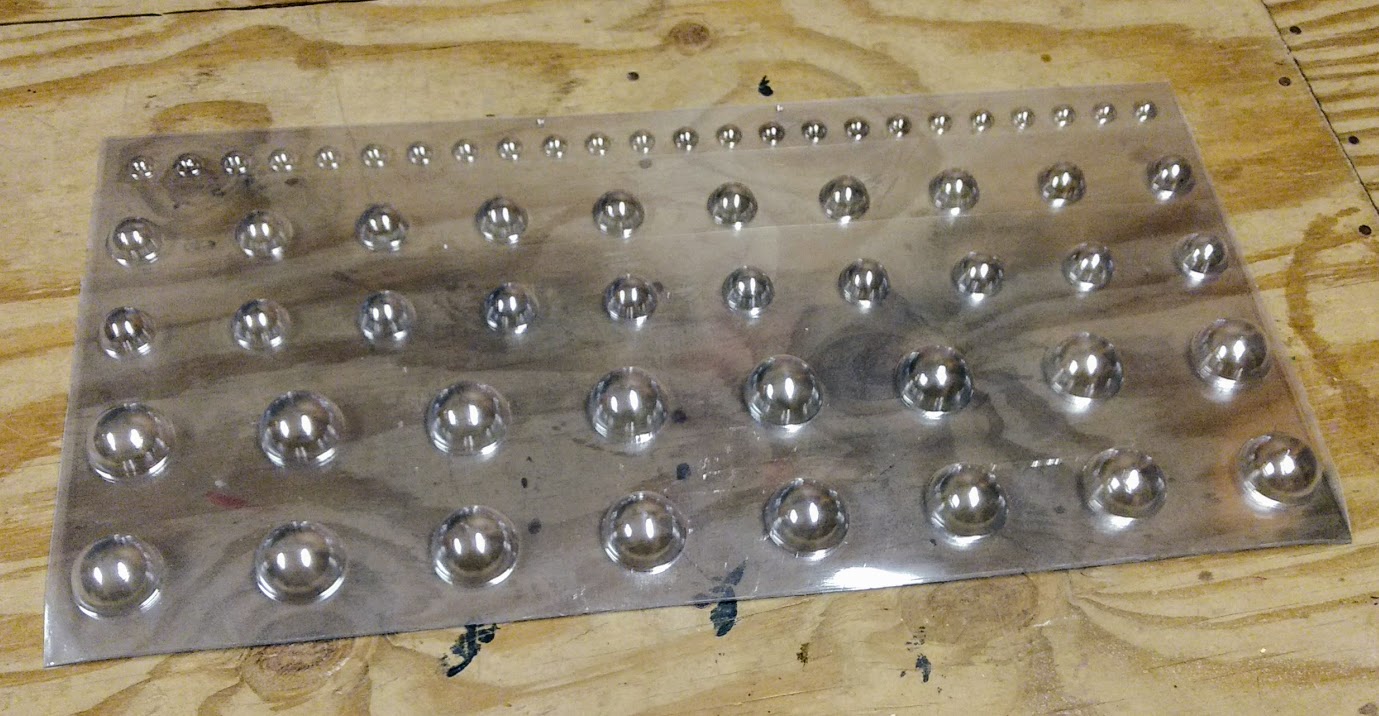

Step 3 – Define ridge lines where the mother mold (hard shell) will separate. We cut bubble sheets into strips and used push pins and tape to hold them in place and brushed silicone on the bottom edge of the strips.

img_20170126_115345643

Next, brush paste wax over the bubble strips and around the base of the mold so that the mother mold doesn’t stick to these surfaces. Nothing sticks to silicone.

img_20170125_090853082

Step 4 – Creating the hard shell mother mold

The product we used for this is called Plastipaste and it’s a trowelable plastic that dries rigid and light. We put two coats of this on as well as a well defined ridgeline over the bubbles.

img_20170125_090822817_burst000_cover_top

img_20170126_200843636

Once the shell is dry, then we drilled holes through the ridgelines and installed bolts. Next, we attached wood support frames to help the shell stay in shape.

img_20170206_092051777_hdr

img_20170206_091923319

img_20170206_095307042

Then, the fun part is demolding, removing the model to see how the mold turned out!

img_20170128_193013872

Stage 3 – Make the fiberglass epoxy resin casts. 7 Indian casts and 7 wave casts

Step 1 – Spray mold release onto the silicone to ensure the epoxy releases well.

img_20170215_202210519

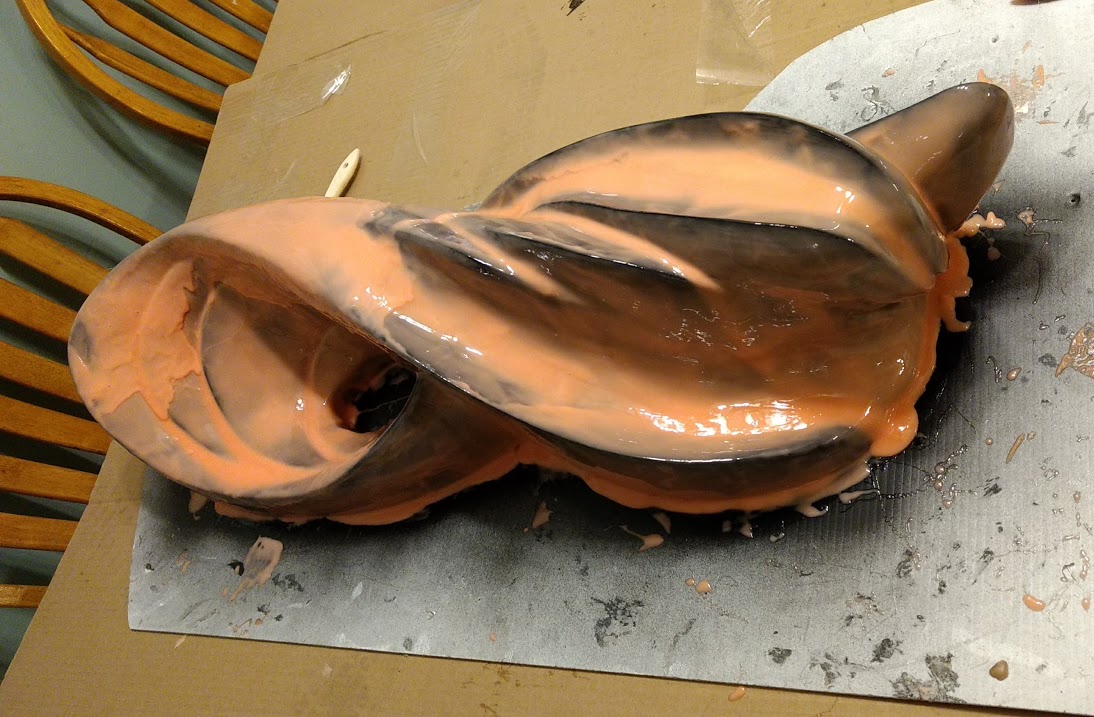

Next, we painted 2 coats of grey epoxy gel coat onto the silicone mold. This gives a thick, smooth epoxy surface to the cast.

img_20170128_204628596

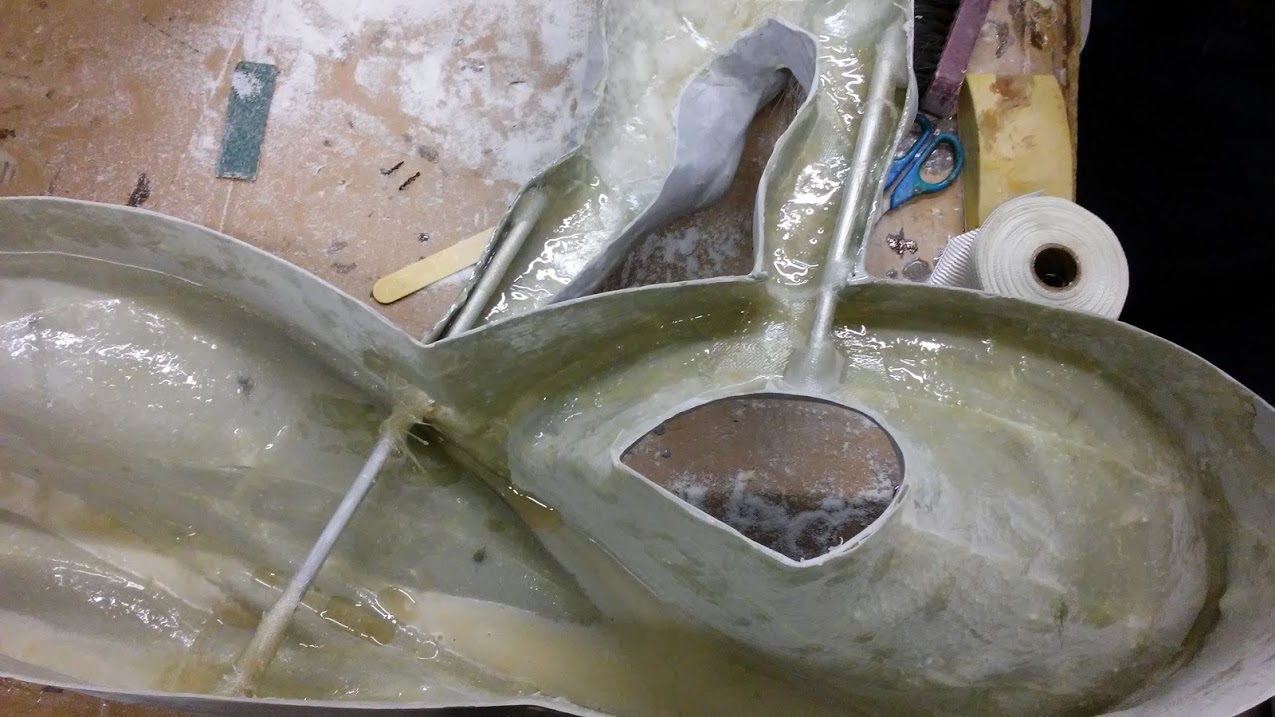

Next, the gel coat needs some support layers, so we lay in 2 layers of 10 0z. fiberglass cloth and dissolve it with West System epoxy. Then finish it off with a final layer of epoxy thickened with west system 403 thickner.

img_20170130_172936944_burst000_cover_top

img_20170130_172713297

This video shows some footage of making the casts…

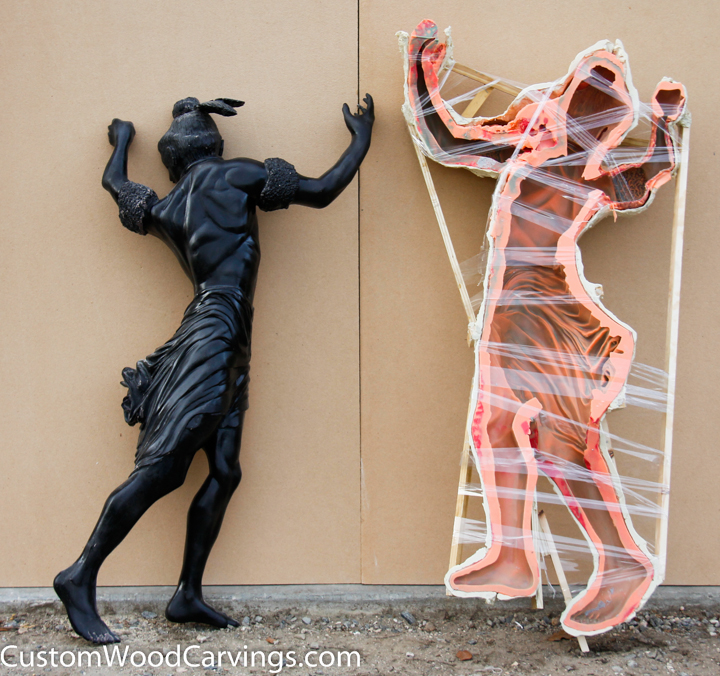

This video shows the demolding process revealing a finished cast…

20170303-_mg_9711

Stage 4 – Combining the 7 Indian casts with the 7 wave casts

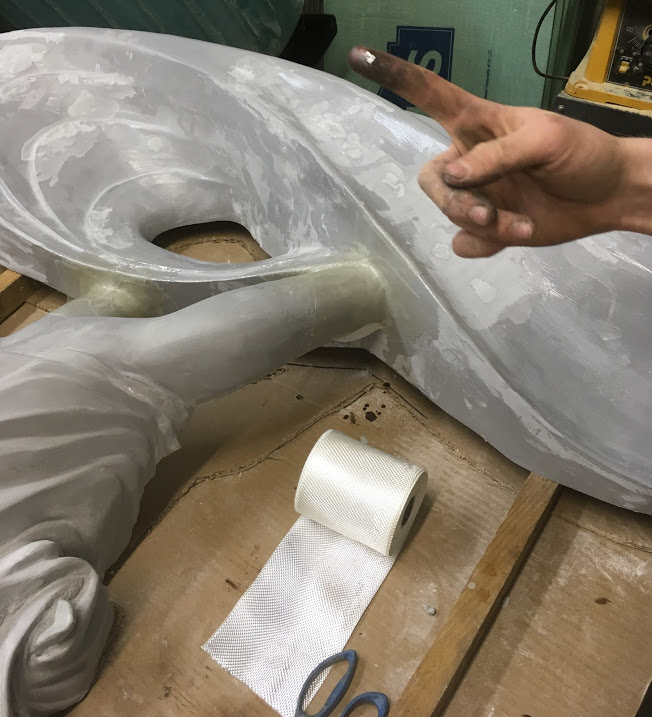

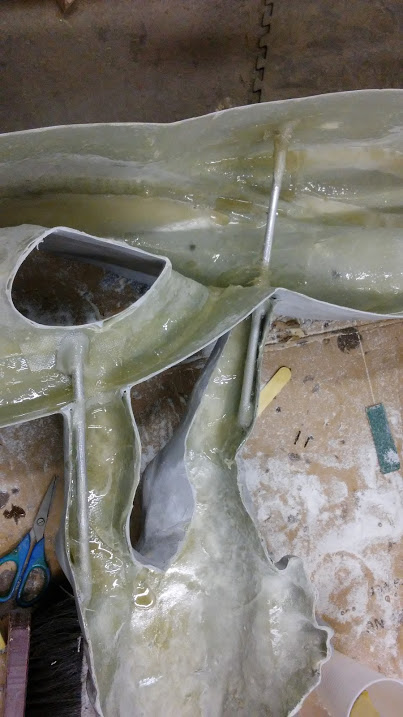

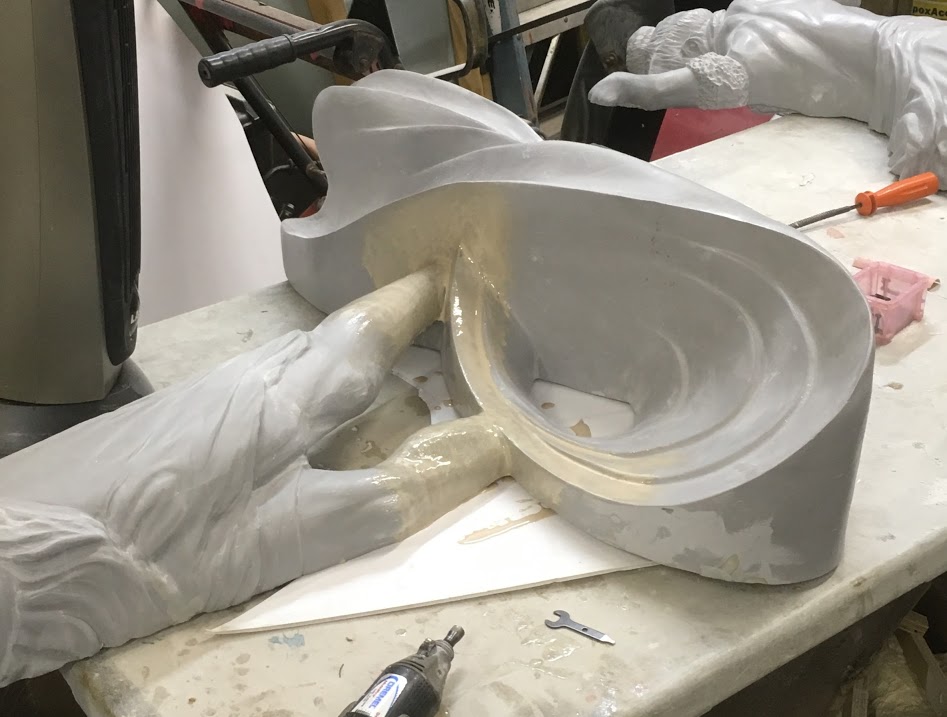

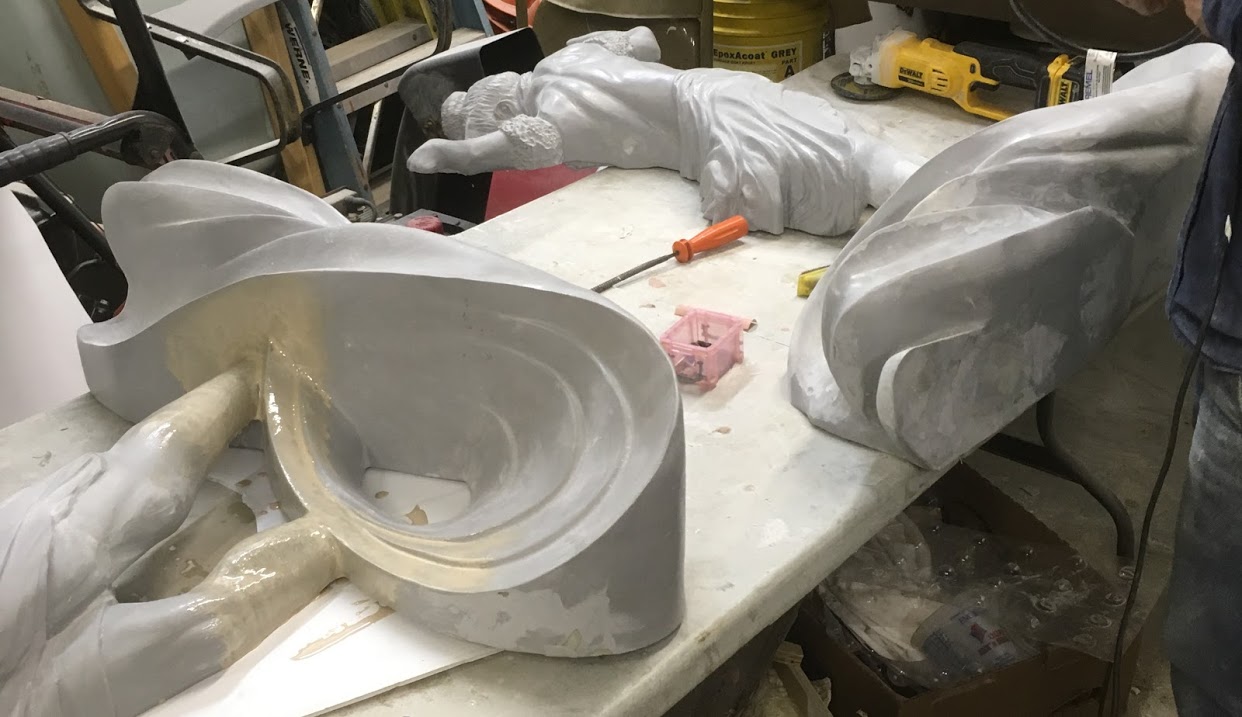

Here we used a template made from the CNC to properly align the two casts and tell us where to cut off the legs to make the joint. We used a combination of epoxy clay, fiberglass resin and aluminum support rods to join them together.

image-4

image-3


img_3462

Stage 5 – Embed the mounting studs

Each cast called for 13 threaded stainless steel 3/8″ rods. This meant we would be mounting 91 studs! We used the CNC to cut out 4″ thick foam templates to hold the rods in place so they are all consistent in spacing and direction for easy install. We used a combination of epoxy clay, fiberglass resin and aluminum rod to join them.

image-5

image-2

image-6

20170303-_mg_9659

20170303-_mg_9662

20170303-_mg_9721

20170303-_mg_9730

20170303-_mg_9762

20170303-_mg_9763

image-4

Packed and ready to ship to Tampa Florida where they will be painted and installed by the fine crew at Signstar. Here are the pics of what Signstar did with the casts.




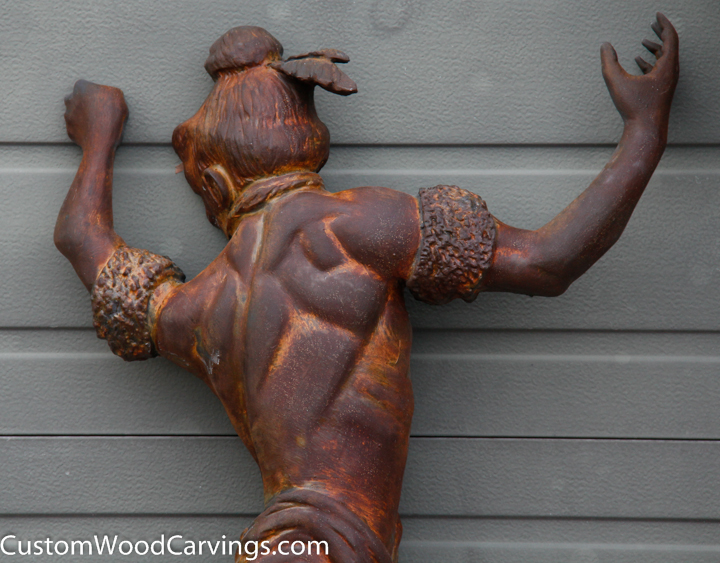

After their amazing airbrush job, they installed…


This was a wonderful collaboration with Danny Powell from Signstar in Tampa, Florida. Thank you Town of Indian Shores for trusting us with your new monument signs!

Thank you for looking!
